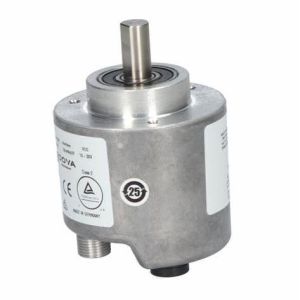

SICK AFM60A-S4NB018x12 | AFS/AFM60 Ethernet,ABSOLUTE ENCODERS
Features
Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial 1) 2)
Supply voltage 10 ... 30 V
Power consumption ≤ 3 W (without load)
Reverse polarity protection ✔
MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) 3)
1) A-coded.
2) D-coded.
3) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no.
8015532.
Mechanical data
Mechanical design Solid shaft, face mount flange
Shaft diameter 10 mm
Shaft length 19 mm
Weight 0.2 kg
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Start up torque 0.5 Ncm (+20 °C)
Operating torque 0.3 Ncm (+20 °C)
Permissible shaft loading 80 N (radial)
40 N (axial)
Operating speed ≤ 9,000 min⁻¹ 1)
Moment of inertia of the rotor 6.2 gcm²
Bearing lifetime 3 x 10^9 revolutions
Angular acceleration ≤ 500,000 rad/s²
1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range.
