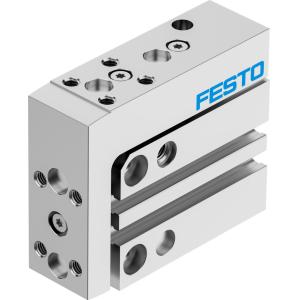

Stroke
10 mm
Size
6
Piston diameter
6 mm
Cushioning
Elastomer cushioning, at both ends, stroke not adjustable
Mounting position
Any
Guide
Recirculating ball bearing guide
Structural design
Yoke
Piston rod
Slide
Position sensing
For proximity sensor
Symbol
00991737
Operating pressure
0.15 MPa ... 0.8 MPa
Operating pressure
1.5 bar ... 8 bar
Operating pressure
21.75 psi ... 116 psi
Max. speed
0.5 m/s
Repetition accuracy
<= 0.3 mm
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-C1-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Class 6 according to ISO 14644-1
Ambient temperature
-10 °C ... 60 °C
Impact energy in the end positions
0.01 J
Cushioning length
0.9 mm
Max. force Fy
296 N
Max. force Fz
296 N
Max. torque Mx
0.8 Nm
Max. torque My
0.7 Nm
Max. torque Mz
0.7 Nm
Theoretical force at 6 bar, retracting
13 N
Theoretical force at 6 bar, advancing
17 N
Moving mass
28 g
Product weight
68 g
Type of mounting
With through-hole
With internal thread
Pneumatic connection
M3
Note on materials
RoHS-compliant
Cover material
Wrought aluminum alloy
Seals material
NBR
PU
Guide material
NBR
PA
High-alloy steel
Housing material
Wrought aluminum alloy
Piston rod material
High-alloy stainless steel
